Configure calculated column (formula)

"columns": [
  ...
    {
      "headerGroup":"Set ranking",
      "headerCss":"headSetRanking",
      "header": "RPN",
      "filterable":true,
      "bindings": "rpn",
      "type": "int",
      "cellRenderer": "rpn",
      "width": 60,
      "level": 2,
      "readOnly":false
      "formula":"commonRpn"
    },
  ...


It is possible to configure column so the values (cells) will be calculated automatically based on the other columns.

Config file

Please follow this article, to learn where is the configuration file located, see:  Configure risksheet columns

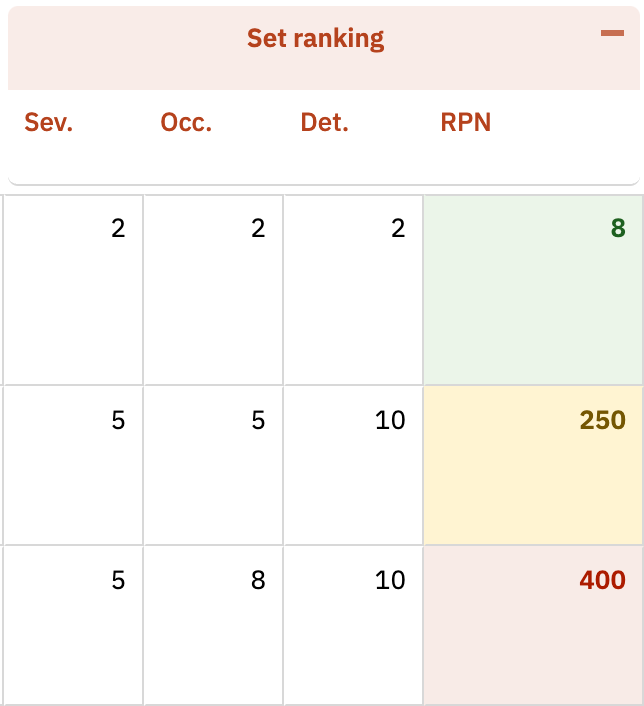

Example: RPN Number

A reference example is the RPN columns where the value is calculates as value of Severity column multiplied by Occurence column, multiplied by Detection column.

RPN = Severity * Detection * Occurence

Configuration

To configure the column formula you would need to:

1. point a column to a formula definition
2. define the formula

...
"formulas":{
  ...
  "commonRpn":"function(p){\n var value = p.item['occ']*p.item['det']*p.item['sev'];\n return value?value:null;}",
  ...
},
...

"columns": [
  ...
    {
      "headerGroup":"Set ranking",
      "headerCss":"headSetRanking",
      "header": "RPN",
      "filterable":true,
      "bindings": "rpn",
      "type": "int",
      "cellRenderer": "rpn",
      "width": 60,
      "level": 2,
      "formula":"commonRpn"
    },
  ...
  ]
....

• You see that column.formula is pointing to formula ID: commonRpn
• commonRpn is a function defined in section called: formulas
• the function is defined in javascript language and needs to return a value (can be number, string, ...)

Formula Function Parameter

In the example above you can see that the formula function takes as an input one parameter (here it is called p).

This parameter exposes:

• p.item - a data array, that holds the values of rows. So in your formula, you can access the row (item) values by calling p.item[column.id]
• p.cell - a HTML DOM element, usually not used in formulas, but this is used typically in cellDecorators

Store or Not-to-store the results into Work Item

You can configure the Risksheet to store the calculated columns in Polarion. To do so, mark the column as "readOnly":false

...
"columns": [
  ...
    {
      "headerGroup":"Set ranking",
      "headerCss":"headSetRanking",
      "header": "RPN",
      "filterable":true,
      "bindings": "rpn",
      "type": "int",
      "cellRenderer": "rpn",
      "width": 60,
      "level": 2,
      "readOnly":false,
      "formula":"commonRpn"
    },
  ...
  ]
....
