Configure up-stream column to show multiple linked work items

Modified on Sun, 27 Feb, 2022 at 9:00 PM

You can read in following document:  Configure Up-stream Traceability Column how to enable up-stream columns.


We also support the option to have multiple linked work items in the column.

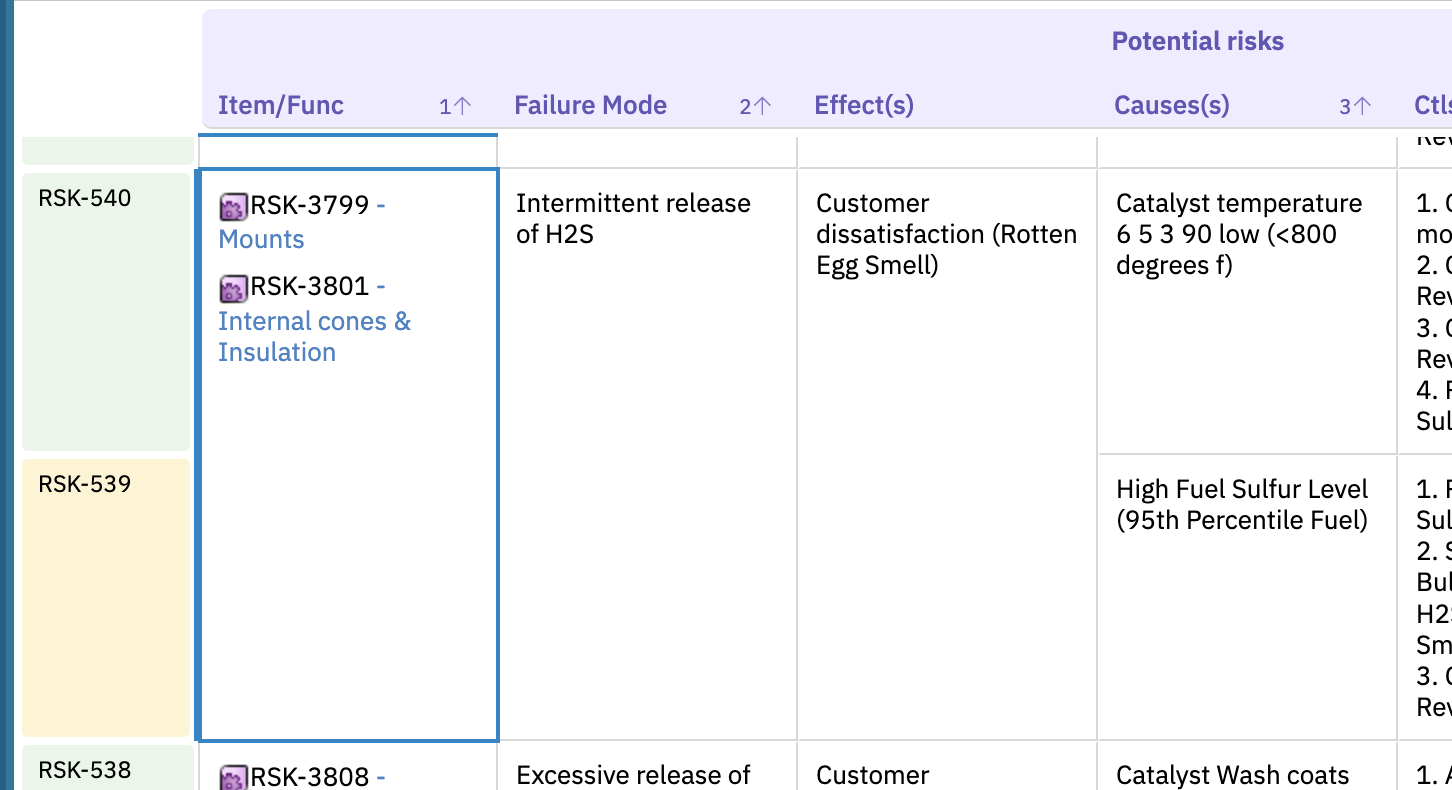

Example: show multiple system element items in Item/Func column

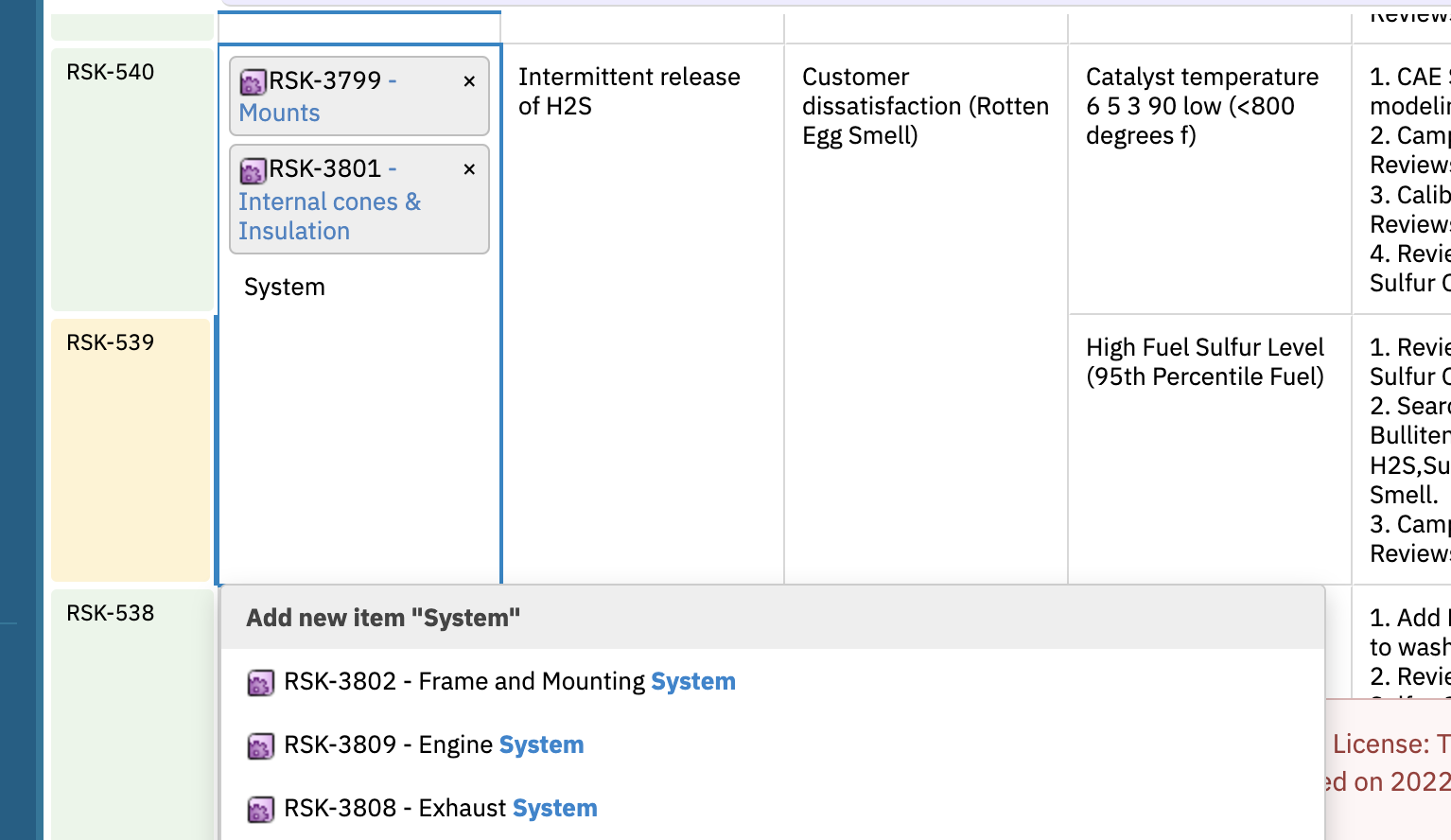

Edit mode:


Configuration:

  • we support the same options as for single item column, see documentation
  •     {
          "headerGroup":"Potential risks",
          "headerGroupCss":"headPotentialRisks",
          "headerCss":"headPotentialRisks",
          "header": "Item/Func",
          "type": "multiItemLink",
          "width": 150,
          "filterable":true,
          "level": 1,
          "id":"item",
          "canCreate":true,
          "typeProperties":  {
                  "linkRole": "assesses",
                  "linkTypes": "systemrequirement,softwarerequirement,systemelement"
                }
        },


Restrictions:

  • You cannot have sub-columns, e.g. if you have itemLink column showing harm, you cannot have another column showing harm severity via dot-notation (bindings=harm.severity)
