Collapse Column Groups

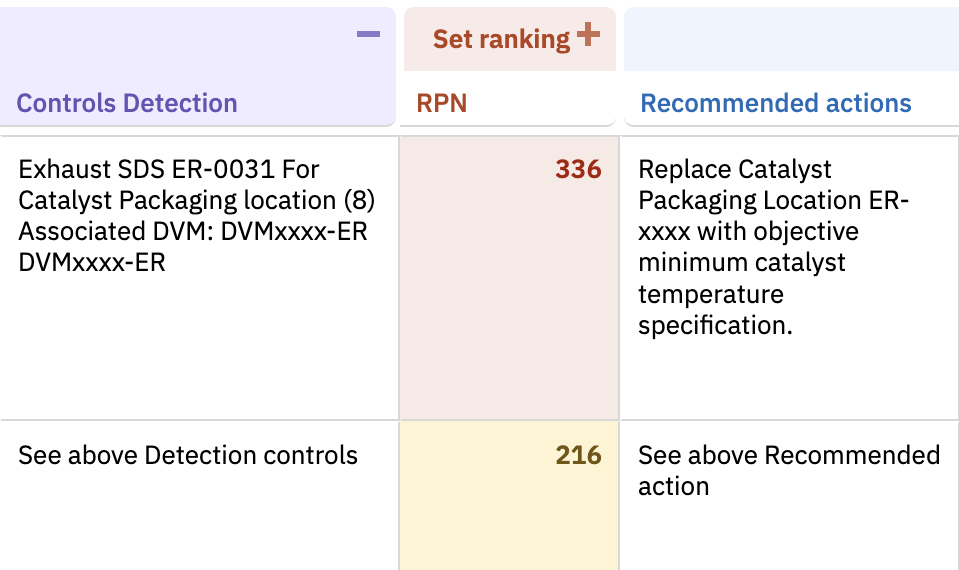

To improve readability and navigation in Risksheet, columns can now be collapsed to a single column. Each column group can be configured to collapse into a single representative column when the group is minimized. For example, the “Set Ranking” group can collapse into just the “RPN” column.

TABLE OF CONTENTS

• Configuration

Configuration

First, you want to define which column the group will collapse into, e.g., in this case, we want the columns to collapse into the "RPN" column.

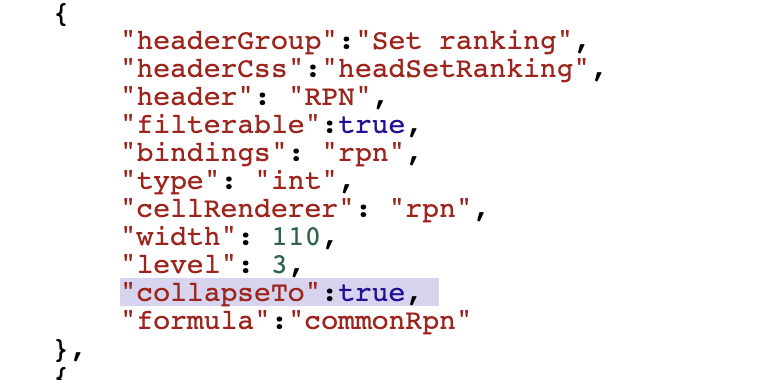

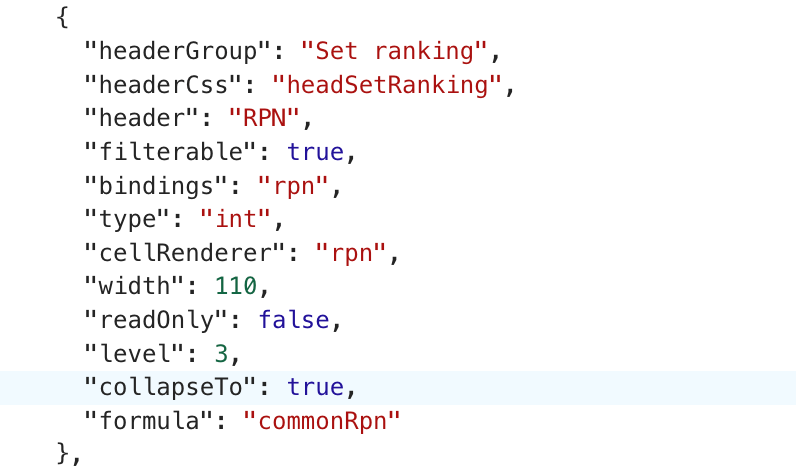

In the Risksheet configuration, set the "collapseTo": true to the column you want the other columns to collapse into.

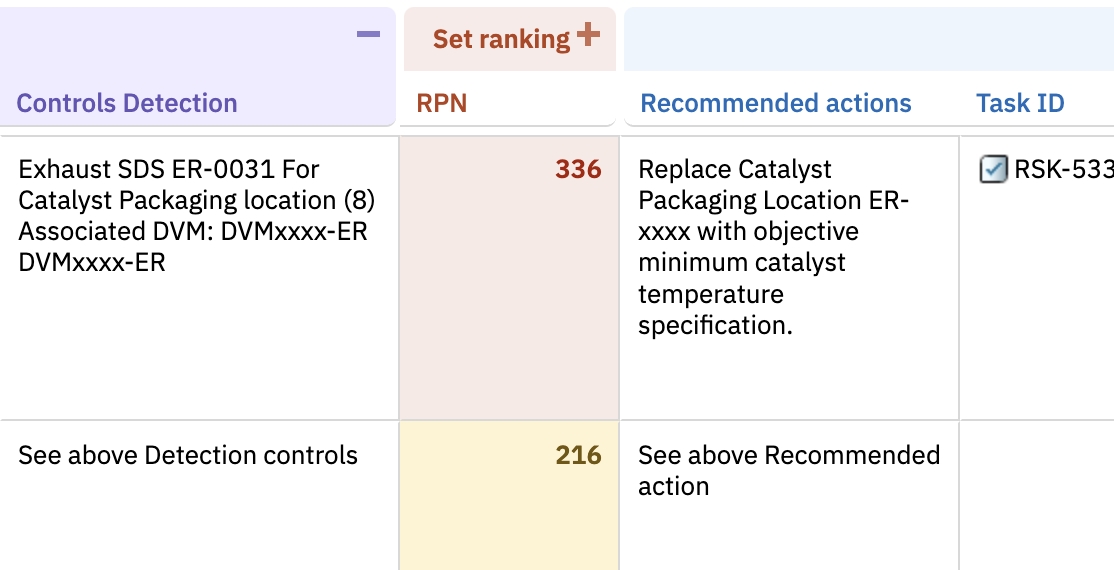

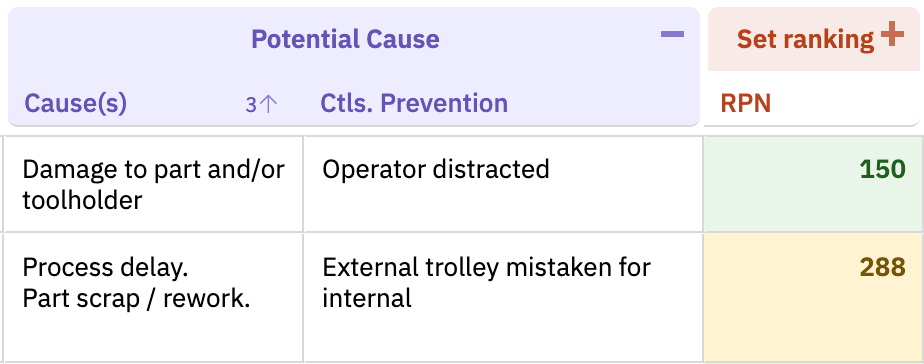

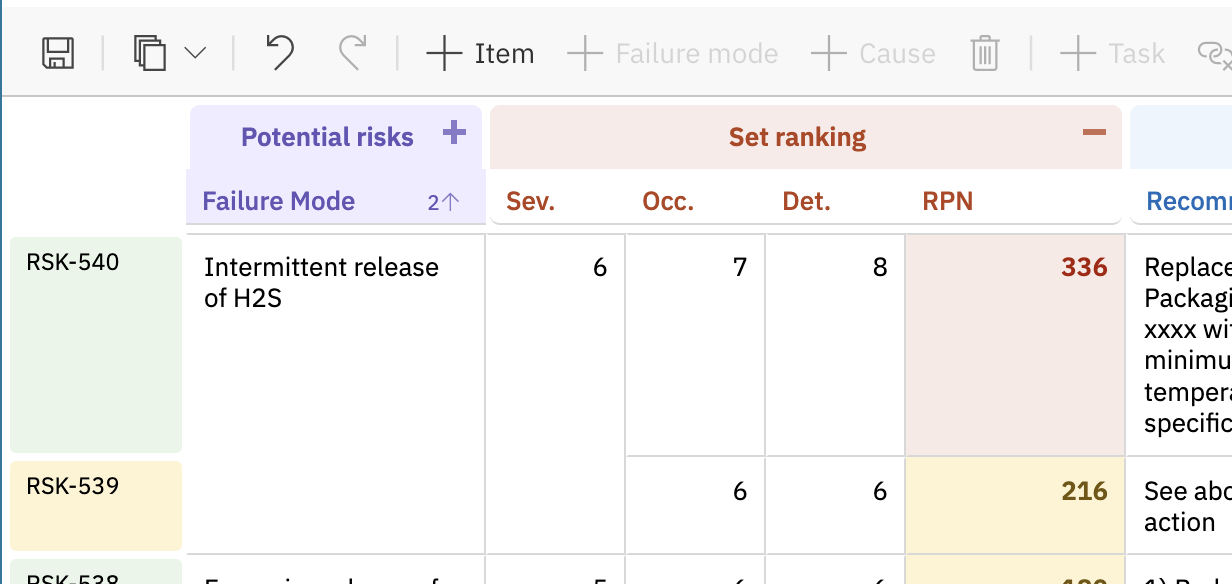

You will notice that the collapsible group headers will have a minus sign on the last column, which will change to a plus sign after it is collapsed.

If you have multiple columns in one group header set to "collapseTo": true, the last one in the order will be used.

For any assistance, please don’t hesitate to reach out by submitting a ticket here.
