Customize the content of the card

You can customize the content and appearance of cards in the Planningboard using scripting.

This allows you to:

• Change colors
• Add or remove fields
• Adjust the layout or height
• Visually highlight specific types of items

Below are a few examples showing how to make these adjustments.

TABLE OF CONTENTS

• Adjust visible fields, layout, and colors
• Fit the title inside the card
• Color items by parent (inherit color from parent item)
• Available API objects and fields
  • Main objects
  • cli. properties (client-side data)

Adjust visible fields, layout, and colors

You can define what appears on a card using the Item Script in the Advanced Properties section of the Planningboard widget.

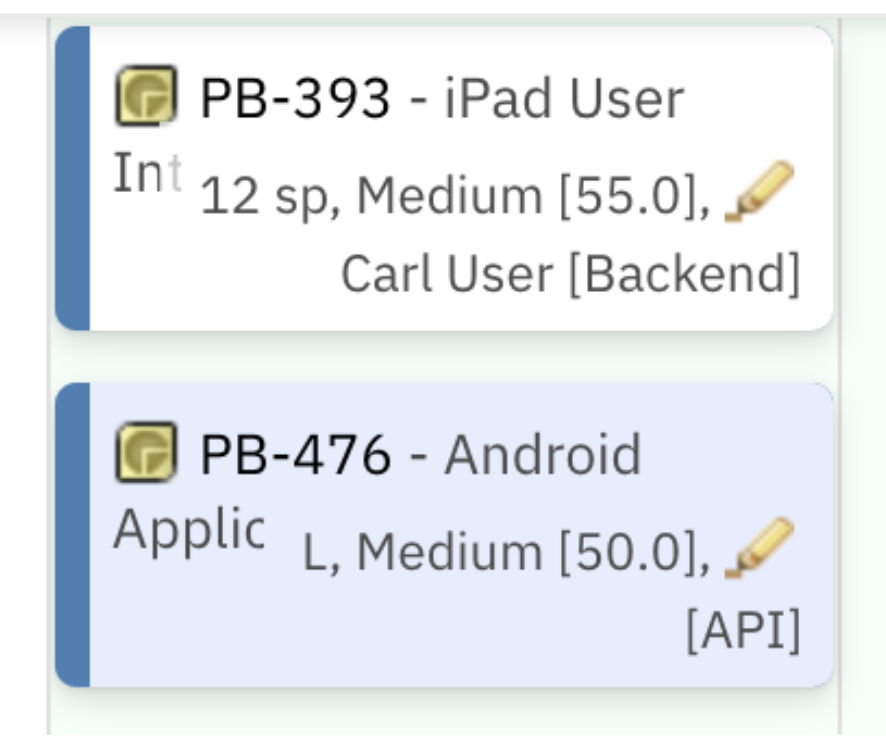

This example shows two lines of item details and applies a specific background color based on the package type. Adjust the script below:

var crType = wi.getValue("crType");
if (crType != null && crType.getId() === "parentCR") {
  cli.fieldsLine =
    workitem.fields().get("swagEstimate").render().htmlFor().forFrame() +
    ", " +
    workitem.fields().priority().render().withText(true).withIcon(false).htmlFor().forFrame() +
    ", " +
    workitem.fields().status().render().withText(false).htmlFor().forFrame() +
    "<br>" +
    workitem.fields().assignee().render().htmlFor().forFrame() +
    " [" +
    workitem.fields().get("vendorTeam").render().htmlFor().forFrame() +
    "]";
  cli.cardColor = "#e3edff";
} else {
  cli.fieldsLine =
    workitem.fields().get("initialStoryPoints").render().htmlFor().forFrame() +
    " sp, " +
    workitem.fields().priority().render().withText(true).withIcon(false).htmlFor().forFrame() +
    ", " +
    workitem.fields().status().render().withText(false).htmlFor().forFrame() +
    "<br>" +
    workitem.fields().assignee().render().htmlFor().forFrame() +
    " [" +
    workitem.fields().get("solutionTeam").render().htmlFor().forFrame() +
    "]";
}

Fit the title inside the card

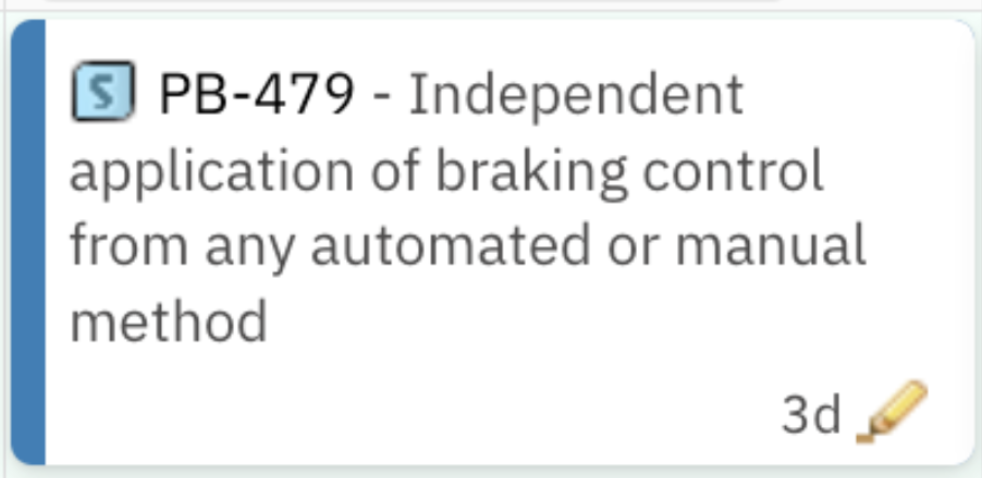

If your item titles are longer, you can dynamically adjust their height.

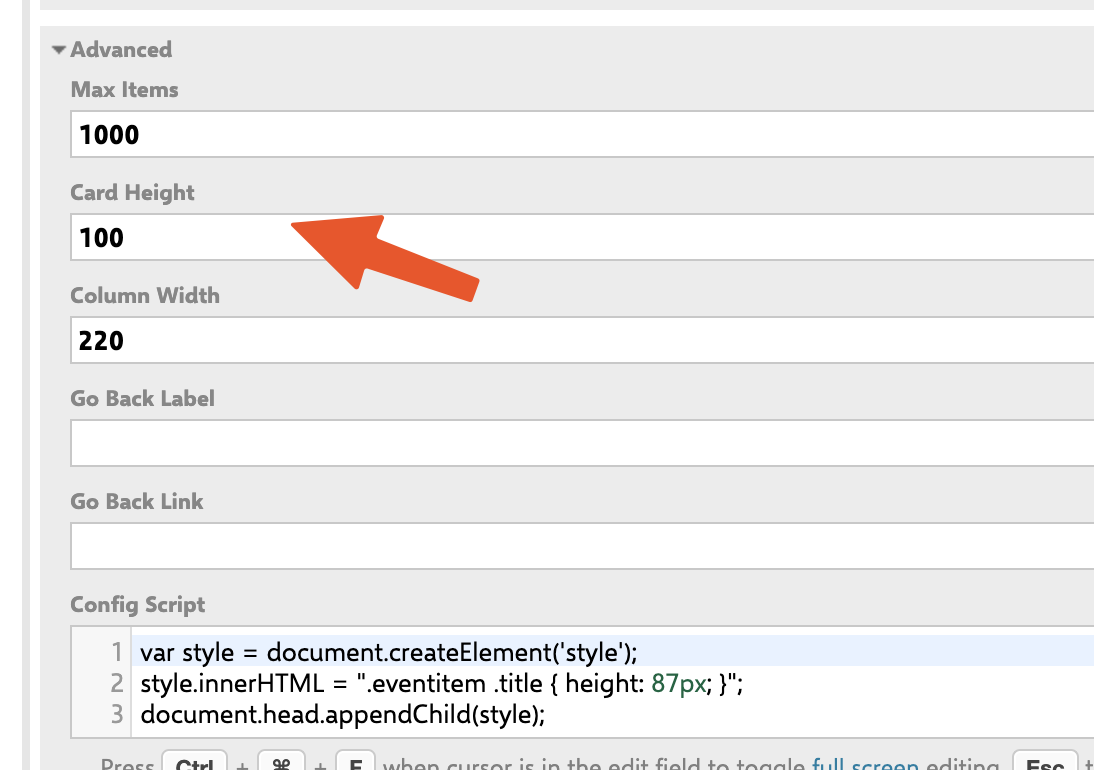

Add this snippet to the Config Script in the same Advanced Properties section:

var style = document.createElement('style');
style.innerHTML = ".eventitem .title { height: 87px; }";
document.head.appendChild(style);

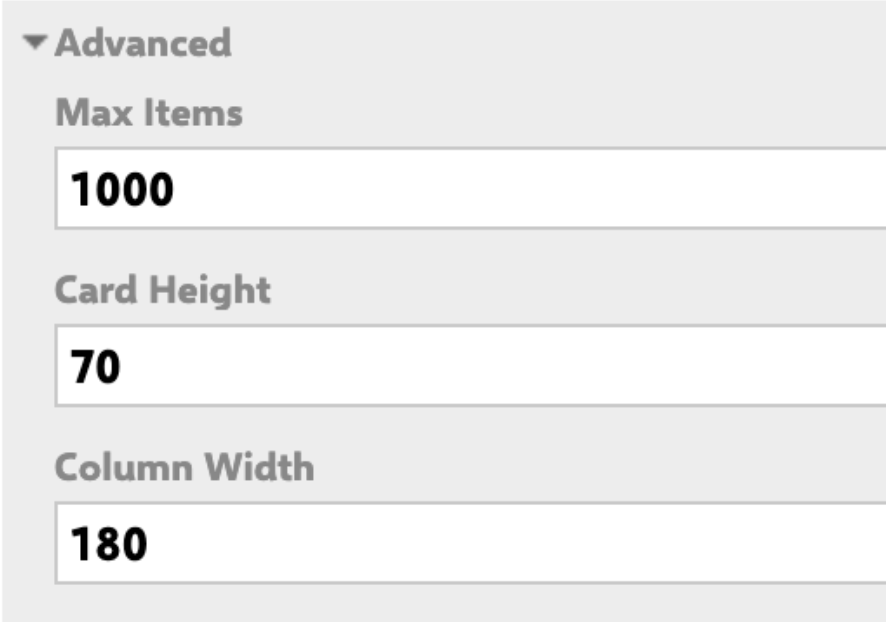

Make sure that the title height you define here is slightly smaller than the Card Height to ensure the content fits neatly.

You can inspect any card in your browser (right-click → Inspect) and use the Elements tab to preview height values in real time. Here, you can see that the previously set height is overwritten with the new one from the script. This makes it easy to find the perfect visual balance for your Planningboard.

Color items by parent (inherit color from parent item)

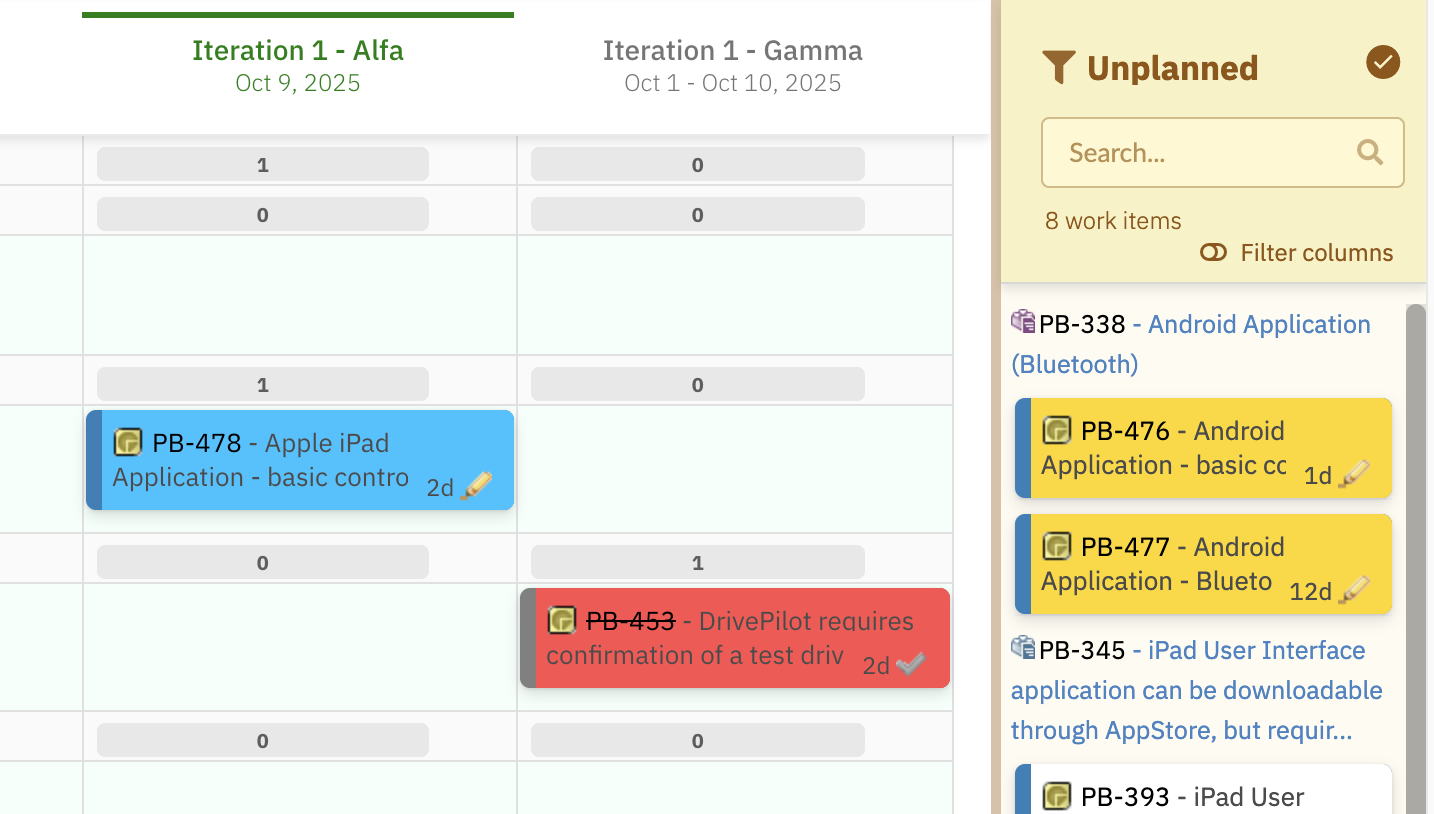

You can automatically color all cards belonging to the same parent. This customization is useful for visual grouping, making it easier to identify which items belong together.

Each parent item (such as System Requirement in our example) defines its own color in a custom field. All child items linked to it will inherit that color automatically.

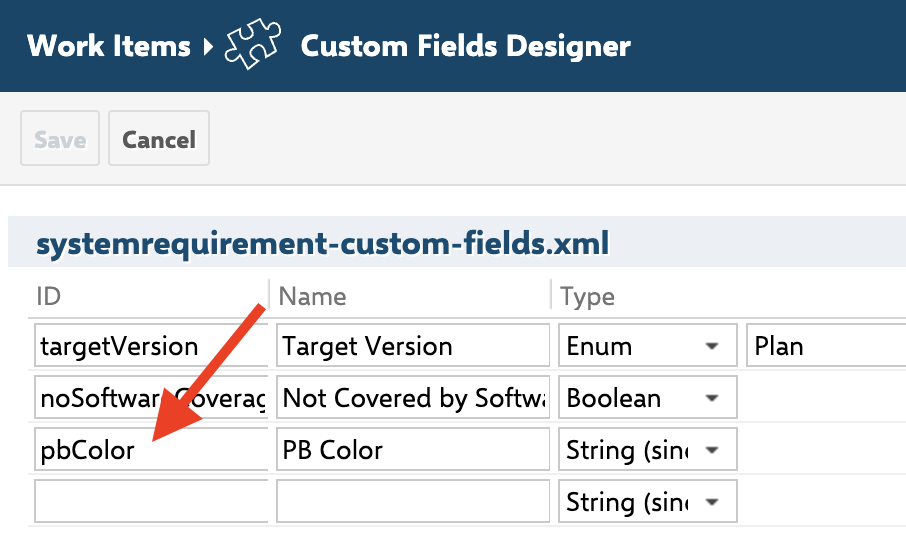

Create a custom field on your parent item type - for example, name it pbColor (type: String).

Enter a color name (e.g., blue, red, green, yellow) in this field for each parent item.

Add the following script to your Item Script configuration:

// Allow editing of card attributes
cli.readonly = false;

// Get all direct links for this work item
var i = wi.getLinkedWorkItemsStructsDirect().iterator();
var systemrequirement = null;

// Identify linked parent System Requirement
while (i.hasNext()) {
  var link = i.next();
  if (link.getLinkRole() && link.getLinkRole().getId() === "implements") {
    systemrequirement = link.getLinkedItem();
  }
}

// Apply the parent's color if defined
if (systemrequirement != null) {
  var pbColor = systemrequirement.getValue("pbColor");
  if (pbColor && pbColor.trim() !== "") {
    pbColor = pbColor.toLowerCase().trim();
    if (pbColor === "blue") cli.cardColor = "#00c3ff";
    else if (pbColor === "red") cli.cardColor = "#ff4d4d";
    else if (pbColor === "green") cli.cardColor = "#00f57f";
    else if (pbColor === "yellow") cli.cardColor = "#ffd700";
  }
}

• If your project uses a different relationship type, replace "implements" with your link role
• You can expand the color list or use custom HEX codes.
• Works best when each child item has only one parent in the hierarchy.
• Ensure that the custom field pbColor is created and populated for each parent item.

Available API objects and fields

You can use the following objects and properties inside your Planningboard scripts. These are the standard scripting APIs available for customizing card appearance and behavior.

Main objects

cli. properties (client-side data)
