Gantt - Configure Default Values and Properties

Modified on Mon, 26 Sep 2022 at 04:09 PM

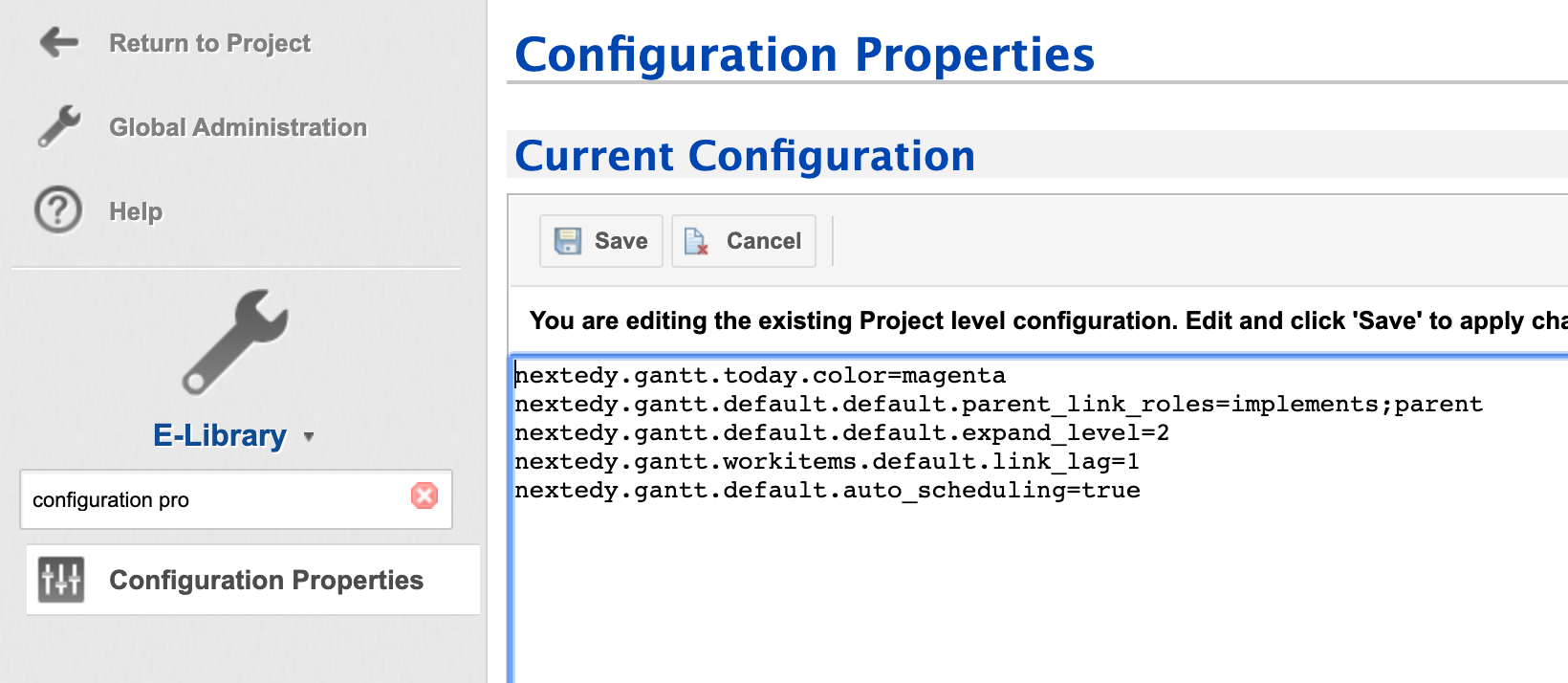

You can define following propererties in Administration > Configuration Properties

Gantt Screenshot

General Properties

  • nextedy.gantt.workitems.unplanned_color - Color of the unplanned item. The default is: #7D3C98
  • nextedy.gantt.today.color - Color of today marker. The default is: gray
  • nextedy.gantt.classic_project" - Use the classic look of the project item type. The default is: false
  • nextedy.gantt.zoom.DD.min_column_width - The width of the timeline column in "DD" scale mode. The default is: 120
  • nextedy.gantt.zoom.D.min_column_width - The width of the timeline column in "D" scale mode. The default is: 60
  • nextedy.gantt.zoom.W.min_column_width - The width of the timeline column in "W" scale mode. The default is: 30
  • nextedy.gantt.zoom.M.min_column_width - The width of the timeline column in "M" scale mode. The default is: 70
  • nextedy.gantt.zoom.Q.min_column_width - The width of the timeline column in "Q" scale mode. The default is: 90
  • nextedy.gantt.zoom.Y.min_column_width - The width of the timeline column in "Y" scale mode. The default is: 40
  • nextedy.gantt.zoom.YY.min_column_width - The width of the timeline column in "YY" scale mode. The default is: 190
  • nextedy.gantt.debug - Enable client side debug messages. The default is: false
  • nextedy.gantt.default.auto_scheduling - Toggle auto-scheduling by default. The default is: false
  • nextedy.gantt.default.critical_path - Toggle visualization of critical path by default. The default is: false

Work Items Gantt Widget Properties Defaults

Following settings are used as a default values when you add a Widget to a page. Once the widget is added to the page, the widget property values are used.

  • nextedy.gantt.workitems.default.sort_by - Default value for "Sort By" property. Default is: id
  • nextedy.gantt.workitems.default.expand_level - Default value for "Load children" property, it specifies how many levels should be added to the dataset. Default is: 0
  • nextedy.gantt.workitems.default.show_unplanned - Default value for "Show Unplanned" property. Default is: true
  • nextedy.gantt.workitems.default.scale - Default value for "Scale" property. Default is: W
  • nextedy.gantt.workitems.default.parent_link_roles - Default value for "Parent Link Roles" property. It is a list of link role IDs separated by ";". Default is: empty
  • nextedy.gantt.workitems.default.dependency_link_roles - Default value for "Dependency Link Roles" property. It is a list of link role IDs separated by ";". Default is: empty
  • nextedy.gantt.workitems.default.start_field" - Default value for "Start Field" property. Default is: gantt_start
  • nextedy.gantt.workitems.default.end_field - Default value for "End Field" property. Default is: none
  • nextedy.gantt.workitems.default.duration_field - Default value for "Duration Field" property. Default is: gantt_duration
  • nextedy.gantt.workitems.default.progress_field - Default value for "Progress Field" property. Default is: gantt_progress
  • nextedy.gantt.workitems.default.maximize_view - Default value for "Maximize" property. Default is: false
  • nextedy.gantt.workitems.default.hide_toolbar - Default value for "Hide Toolbar" property. Default is: false
  • nextedy.gantt.workitems.default.progress_coloring - Default value for "Progress Coloring" property. Default is: true
  • nextedy.gantt.workitems.default.drag_children - Default value for "Drag Children" property. Default is: true
  • nextedy.gantt.workitems.default.max_items - Default value for "Max Items" property. Default is: 100
  • nextedy.gantt.workitems.default.show_today_marker - Default value for "Show Today Marker" property. Default is: true
  • nextedy.gantt.workitems.default.working_time - Default value for "Show Today Marker" property. Default is: true

Additional defaults, not yet possible to be configured on specific instance of Gantt Widget

  • nextedy.gantt.workitems.default.forward_dependency - By default in Polarion there is a link role DEPENDS_ON, linking task A with task B, so A depends on B (A can be started after B), if you link the tasks other way around (from B to A), set this to true. The default value is: false
  • nextedy.gantt.workitems.default_duration - the default duration of an item, if not specified in task itself, in days. The default is: 10
  • nextedy.gantt.workitems.default.link_lag - the default lead/lag time for dependency links. Default it: 0
  • nextedy.gantt.multiAssignmentSameEffortForAll=false - configure if the effort is same or shared for multi assignments. The default is: true

Plans Gantt Widget Properties Defaults

These value are used as a default values when you add a Widget to a page. Once it is added, the widget values are used.

  • nextedy.gantt.plans.default.sort_by - Default value for "Sort By" property. Default is: id
  • nextedy.gantt.plans.default.expand_level - Default value for "Load children" property, it specifies how many levels should be added to the dataset. Default is: 0
  • nextedy.gantt.plans.default.show_unplanned - Default value for "Show Unplanned" property. Default is: true
  • nextedy.gantt.default.plans.scale - Default value for "Scale" property. Default is: W
  • nextedy.gantt.plans.default.maximize_view - Default value for "Maximize" property. Default is: false
  • nextedy.gantt.plans.default.hide_toolbar - Default value for "Hide Toolbar" property. Default is: false
  • nextedy.gantt.plans.default.progress_coloring - Default value for "Progress Coloring" property. Default is: true
  • nextedy.gantt.plans.default.drag_children - Default value for "Drag Children" property. Default is: true
  • nextedy.gantt.plans.default.max_items - Default value for "Max Items" property. Default is: 100
  • nextedy.gantt.plans.default.show_today_marker - Default value for "Show Today Marker" property. Default is: true
  • nextedy.gantt.plans.default.working_time - Default value for "Show Today Marker" property. Default is: true
