Setup a basic Cross team Gantt Chart

This is a new feature available from version 23.4.0
Please check the initial information about team assignments here before you start configuring the Gantt Chart: click here

In this article, we'll take a look at how to set up a basic Cross-team Gantt.

What purpose does this serve?

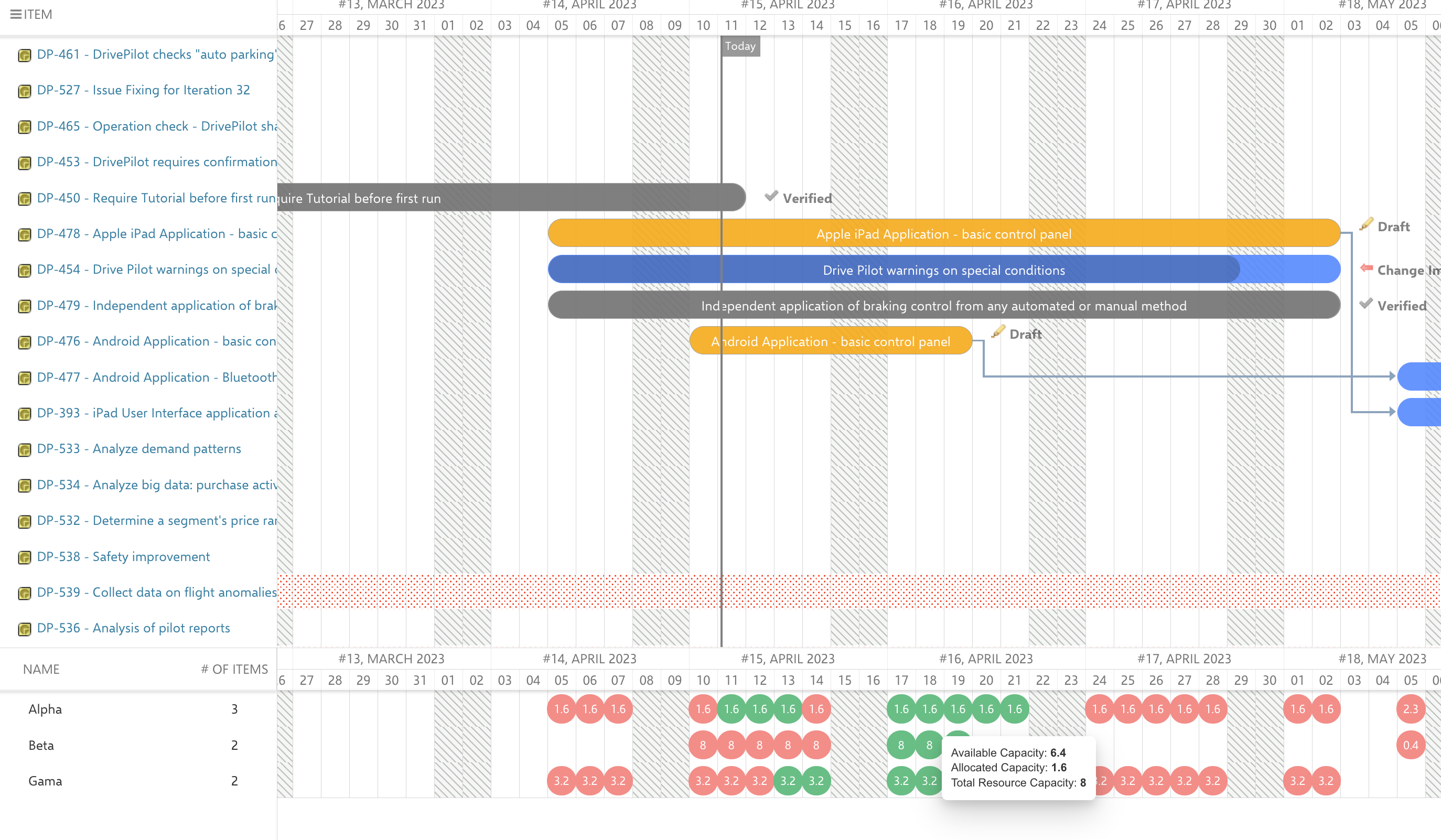

With this Gantt Chart, you'd be able to see all the Teams and WIs assigned to them, without mentioning specific team member assignments.

It means, that in the Resource view, you'll see the Workpackages assigned to the specific Team, but not the team member yet. It'll help you to see easily the capacity of the teams for a given period of time and change it later if you see the team's capacity is overallocated.

There are a few important details to start with:

• create a custom field "Team"

In order to assign a Work Package to a specific Team, you should create a specific custom field for these WIs first.

This way you can specify what Team would be working on this Wor Package and add the specific user assignee from this Team later.

To do so, you have to set the specific field to type Enum -> Nextedy Team;

"Nextedy Team" is a specific type of enumeration, that lets you choose already created WIs of type "Team" as an Enum option.

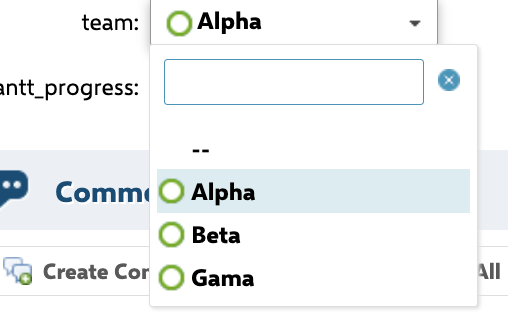

After that, you'll see all WIs of type Team available to select in the newly created custom field.

Now you can configure the Gantt according to your project, just pay attention to some details:

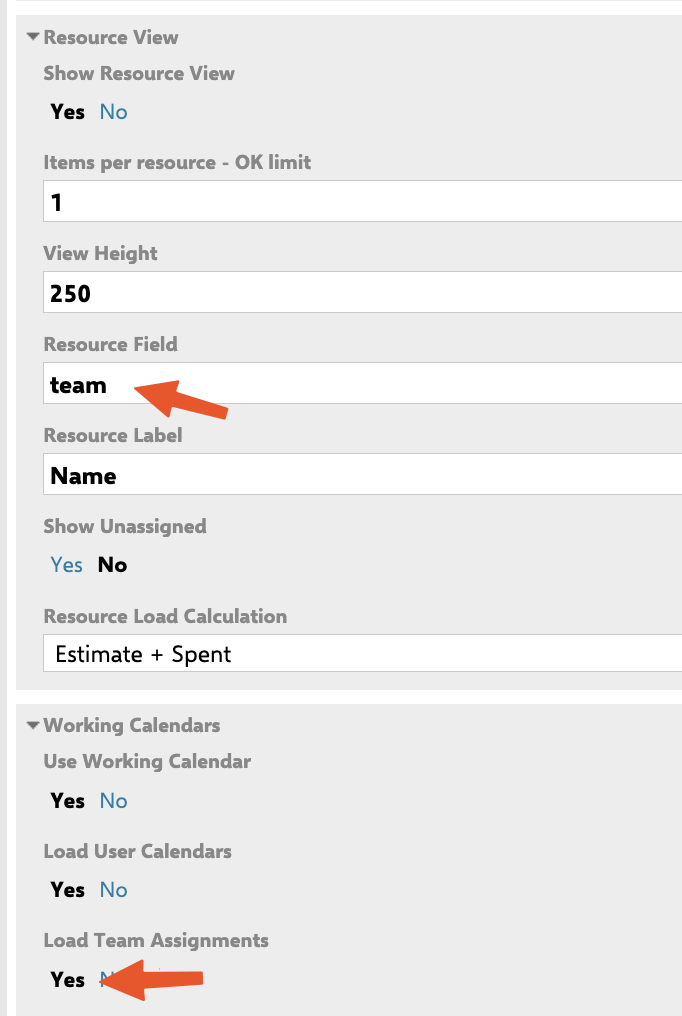

• as a Resource field for the Resource view select the newly created "team" custom field;
• then select "Yes" in Load Team Assignments;

After that with only these little steps, you'd be able to create a nice working cross-team Gantt Chart.

Of course, you may have plenty of different additional configurations to add.

In the next article, we'll review a more complex cross-team Gantt configuration with page parameters and combining tasks with plans: click here

See also:

• Team Assignment Polarion Configuration: click here
• How to setup Team Assignments Gantt: click here

In case of questions, please contact support@nextedy.com
